- Size: 1
- Place of Origin: guangzhou
- Brand Name: NIYA

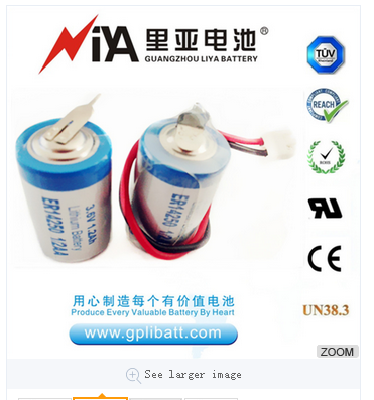

- Model Number: 3.6V ER14250/LS14250 1200mAh 1/2AA size lithium battery widely used for smart meters
- Weight: 1.000 kg
Quick Details
- Place of Origin: Guangdong, China (Mainland)
- Brand Name: NiYA
- Model Number: ER14250
- Battery Type: LiSOCl2
- Nominal Voltage: 3.6V
- Size: 1/2AA, 1/2AA
- Nominal Capacity: 1200mAh
- Model: ER14250
- Nominal voltage: 3.6V
- Nominal capacity: 1200mAh
- Operating temperature: -55℃~+85℃
- Weight: 10g
- Maximum Dimension: Diameter: 14.5mm Height:25.4mm
Packaging & Delivery
| Packaging Details: | In carton |
|---|---|
| Delivery Detail: | 3~25 days |
2.Description for ER14250 & ER14505 lithium battery
Battery IEC Code | ER14250 |
Battery Size | 1/2AA |
Electrical Characteristics | |
Nominal Voltage | 3.6V |
Nominal Capacity | 1200mAh |
Open circuit voltage | 3.66V (at +20 °C ) |
Cut off Voltage | 2V |
Max. Constant Current | 50mA |
Max. Pulse Current | 100mA |
Operating Temperature | -55 °C ~+85 °C /-67 °F ~+185 °F |
Storage Temperature | +30 °C /+86 °F max |
Storage Life | ≥ 10 years |
Self – Discharge Rate: | <1% per year |
Physical Characteristics | |
External Diameter (Max) | 14.5mm |
External Height (Max) | 25.5mm |
Weights | 10g |
Battery Technology | Lithium thionyl chloride / LiSOCL2 |
Battery type | High capacity type |
Battery structure | Bobbin type |
Available terminations | -/P axialpins |
Battery IEC Code | ER14505 |
Battery Size | AA |
Electrical Characteristics | |
Nominal Voltage | 3.6V |
Nominal Capacity | 2400mAh |
Open circuit voltage | 3.66V (at +20 °C ) |
Cut off Voltage | 2V |
Max. Constant Current | 100mA |
Max. Pulse Current | 200mA |
Operating Temperature | -55 °C ~+85 °C /-67 °F ~+185 °F |
Storage Temperature | +30 °C /+86 °F max |
Storage Life | ≥ 10 years |
Self – Discharge Rate: | <1% per year |
Physical Characteristics | |
External Diameter (Max) | 14.5mm |
External Height (Max) | 50.5mm |
Weights | 20g |
Battery Technology | Lithium thionyl chloride / LiSOCL2 |
Battery type | High capacity type |
Battery structure | Bobbin type |
Available terminations | -/P axialpins |
Battery IEC Code | ER14505 |
Battery Size | AA |
Electrical Characteristics | |
Nominal Voltage | 3.6V |
Nominal Capacity | 2400mAh |
Open circuit voltage | 3.66V (at +20 °C ) |
Cut off Voltage | 2V |
Max. Constant Current | 100mA |
Max. Pulse Current | 200mA |
Operating Temperature | -55 °C ~+85 °C /-67 °F ~+185 °F |
Storage Temperature | +30 °C /+86 °F max |
Storage Life | ≥ 10 years |
Self – Discharge Rate: | <1% per year |
Physical Characteristics | |
External Diameter (Max) | 14.5mm |
External Height (Max) | 50.5mm |
Weights | 20g |
Battery Technology | Lithium thionyl chloride / LiSOCL2 |
Battery type | High capacity type |
Battery structure | Bobbin type |
Available terminations | -/P axialpins |
